− 31 −

GERMAN FRENCH ITALIAN SPANISHENGLISH

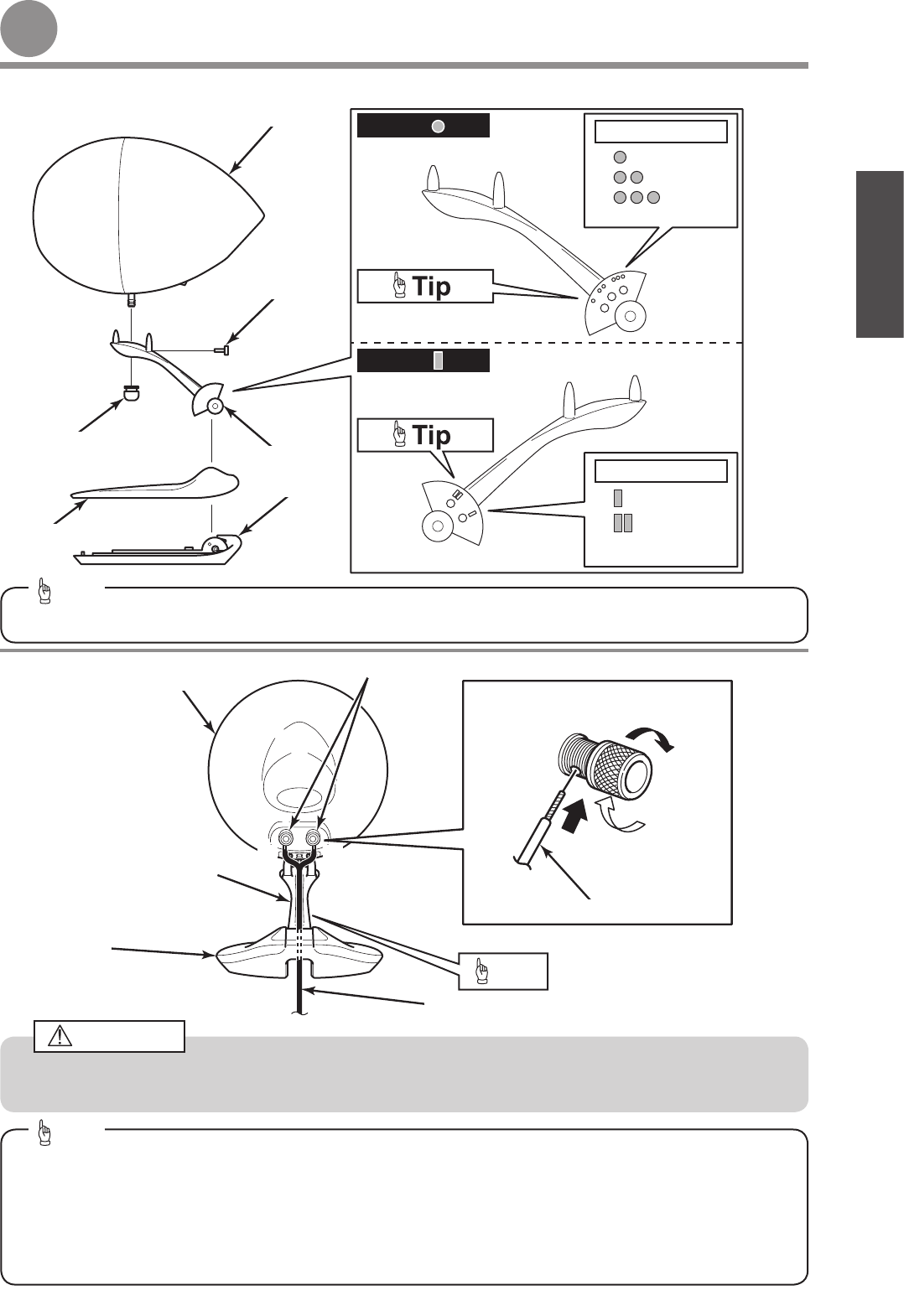

Parts and connectionsParts and connections

※ The diagrams are for the TD508MK3 are the same for the TD510MK2.

Speaker cable

(diameter less than

7 mm)

Speaker arm

Speaker base

Speaker input terminals

󱚛 󱚝

Speaker angle adjustment nut

Speaker base cover

Speaker base

Side with mark

2 main positions

 ：Default

Speaker arm

3 main positions

Side with



mark

Hexagonal head screw

󰝟

Speaker

󰝟

Speaker

When connecting the speaker wires, insert the bare ends of the speaker wires correctly so that they do not touch

neighboring terminals, otherwise it may cause short-circuits.

Caution

The marks on the speaker arm can be used as a guide when adjusting the angle of the speaker arm.

Tip

For speaker cable diameter φ7 mm or less

　 If the speaker cable is passed through the cable holes in the speaker base and the speaker arm, it will improve

the outer appearance of the speaker.

For speaker cable diameter φ7 mm or more

　The speaker cable cannot be passed through the speaker arm, so route it along the outside.

Tip
