On a ceiling or wallOn a ceiling or wall ( The bracket (CB1) which is sold separately is required.)

Bracket

(included with the CB1)

Spacer

(included with the CB1)

For speaker cable diameter

7 mm or more

For speaker cable diameter

7 mm or less

Caution

Space

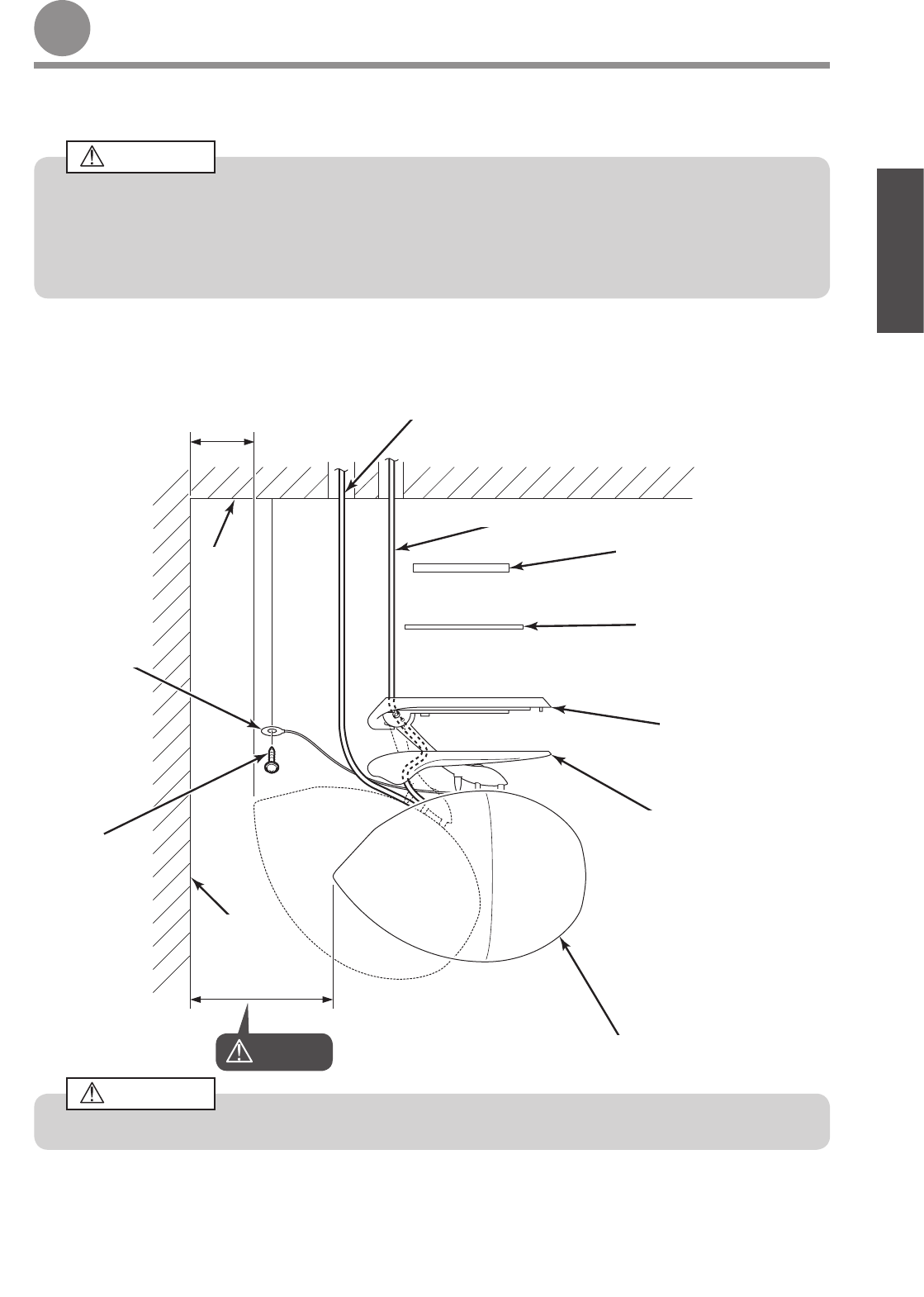

This product can be installed on ceilings and walls. If installing on a ceiling or a wall, you will need to use extra screws

(sold separately). When installing the speaker, be sure to fit the safety cable (included with the CB1).

Safety cable

(included with the CB1)

Base cover

󰝟

Speaker

Speaker base

Space

Leave enough space so that the rear of speaker does not touch the ceiling or wall.

Caution

･ Please read this owner's manual thoroughly prior to carrying out installation and connections.

･ Depending on the specific installation specialised skills maybe required. In such a case, please consult a

qualified technician.

･ Installation by two people is always advised.

･ Please note the screws for fixing the product and safety cable to the ceiling are NOT supplied.

Caution

Wall

Ceiling

Screw

(sold separately)
